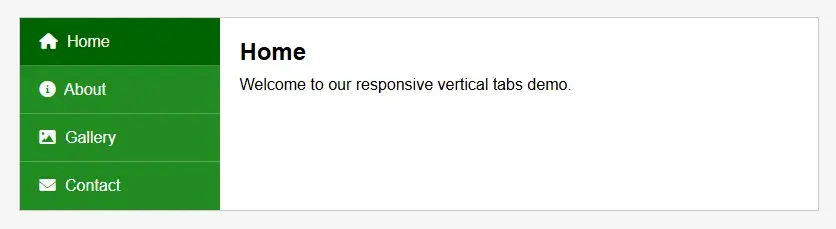

Responsive Vertical Tabs with Animation

In today’s modern web development landscape, delivering interactive and responsive interfaces is key to engaging users. In this tutorial, we’ll build a vertical tab component that not only responds to different screen sizes but also incorporates smooth, dynamic animations using jQuery. The final design features a forest green color scheme, with Font Awesome icons integrated into the tabs, and a clean, professional look. Whether you’re a beginner or an intermediate developer, this step-by-step guide will help you understand the process from scratch.

By the end of this tutorial, you will have learned to:

Structure your HTML in a semantic and accessible manner.
Apply CSS styling that uses a fixed-width container, a responsive layout, and a sorted, well-organized property order.
Implement jQuery animations that create a fade-in and slide-up effect when switching tabs.
Enhance your project with best practices in SEO and accessibility.

Let’s dive into the process.

Step 1: Structuring the HTML

A robust project starts with well-organized HTML. Here, we create a container for both the tab buttons and the corresponding content panels. Each tab is represented by a <button> element that contains an icon (using Font Awesome) and a label. The data-target attribute on each button connects it to the corresponding content panel via its ID.

Below is the HTML code with tab-based indentation for clarity:

HTML

<!DOCTYPE html>
<html lang="en">
<head>
	<meta charset="UTF-8">
	<title>Responsive Vertical Tabs with Animation</title>
	<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0-beta3/css/all.min.css">
	<link rel="stylesheet" href="styles.css">
</head>
<body>
	<div class="tab-container">
		<div class="tabs">
			<button class="tab active" data-target="content1"><i class="fas fa-home"></i> Home</button>
			<button class="tab" data-target="content2"><i class="fas fa-info-circle"></i> About</button>
			<button class="tab" data-target="content3"><i class="fas fa-image"></i> Gallery</button>
			<button class="tab" data-target="content4"><i class="fas fa-envelope"></i> Contact</button>
		</div>
		<div class="tab-content">
			<div class="content active" id="content1">
				<h2>Home</h2>
				<p>Welcome to our responsive vertical tabs demo.</p>
			</div>
			<div class="content" id="content2">
				<h2>About</h2>
				<p>Learn more about our responsive vertical tabs with smooth animation.</p>
			</div>
			<div class="content" id="content3">
				<h2>Gallery</h2>
				<p>Check out our image gallery with responsive design and animation effects.</p>
			</div>
			<div class="content" id="content4">
				<h2>Contact</h2>
				<p>Get in touch with us via our responsive contact form.</p>
			</div>
		</div>
	</div>
	<script src="https://code.jquery.com/jquery-3.6.0.min.js"></script>
	<script src="scripts.js"></script>
</body>
</html>

Explanation

Meta Tags & Title: The ensures proper encoding while the <title> provides a concise description.
Font Awesome: The linked stylesheet from Font Awesome adds icons to our tabs for visual interest.
Tab Container: The <div class="tab-container"> holds the entire component. Inside, the <div class="tabs"> contains the buttons, and the
contains the content panels.
Data Attributes: Each button has a data-target attribute that directly correlates with a content panel’s id. This makes it easier to control the display logic using jQuery.

Step 2: Crafting the CSS for Styling and Responsiveness

Next, we focus on styling the tab interface. The design features a fixed-width sidebar for the tabs with a forest green background and a content area that adapts to 100% of its container’s width. We have sorted the CSS properties alphabetically within each rule block to maintain clarity and consistency.

Below is the CSS code (saved as styles.css):

CSS

* {
	box-sizing: border-box;
	margin: 0;
	padding: 0;
}

body {
	background-color: #f5f5f5;
	font-family: Arial, sans-serif;
	padding: 20px;
}

.tab-content h2 {
	margin-bottom: 10px;
}

.tab-container {
	background: #fff;
	border: 1px solid #ccc;
	display: flex;
	margin: 0 auto;
	max-width: 800px;
	overflow: hidden;
	width: 100%;
}

.tabs {
	background-color: #228B22;
	width: 200px;
}

.tabs button {
	background: none;
	border: none;
	border-bottom: rgba(255, 255, 255, 0.2);
	color: #fff;
	cursor: pointer;
	display: block;
	font-size: 16px;
	outline: none;
	padding: 15px 20px;
	position: relative;
	text-align: left;
	transition: background 0.3s;
	width: 100%;
}

.tabs button::before {
	content: '';
	position: absolute;
	bottom: 0;
	left: 0;
	width: 100%;
	height: 1px;
	background-color: rgba(255, 255, 255, 0.25);
}

.tabs button:last-child::before {
	display: none;
}

.tabs button:hover {
	background-color: #006400;
}

.tabs button.active {
	background-color: #006400;
}

.tabs i {
	margin-right: 5px;
}

.tab-content {
	flex: 1;
	position: relative;
}

.tab-content .content {
	display: none;
	left: 0;
	padding: 20px;
	position: absolute;
	top: 0;
	width: 100%;
}

.tab-content .content.active {
	display: block;
}

/* Responsive Styles */
@media (max-width: 767px) {
	.tab-container {
		flex-direction: column;
	}

	.tabs {
		width: 100%;
	}

	.tabs button {
		text-align: center;
	}

	.tab-content .content {
		position: static;
	}
}

Explanation

Global Reset: The universal selector (*) resets margins, paddings, and sets the box-sizing model.
Body Styling: The body has a light gray background with padding to prevent content from touching the edges.
Tab Container: This div is styled as a flex container with a fixed maximum width and a responsive 100% width to adapt to different screen sizes.
Tabs Section:
- The sidebar is given a fixed width (200px) and a forest green background (#228B22).
- The <button> elements are styled to have a transparent background by default and change to a deep forest green (#006400) on hover or when active.
- The pseudo-element (::before) adds a subtle divider line between the buttons.
Content Area: The content sections are positioned absolutely within a relative container, initially hidden (display: none;) and shown when active.

Sorting the CSS properties alphabetically within each block not only improves code maintainability but also ensures that any developer reviewing the code can quickly find specific properties.

Step 3: Implementing jQuery for Smooth Animations

The dynamic aspect of our vertical tabs is powered by jQuery. The script listens for click events on each tab button and then applies a smooth fade-in and slide-up animation to the associated content panel. The animation effect is created by first positioning the new content 20 pixels down with zero opacity and then animating it to its final position with full opacity.

Below is the jQuery code (saved as scripts.js):

JAVASCRIPT

$(document).ready(function() {
	$('.tabs button').click(function() {
		if ($(this).hasClass('active')) {
			return;
		}
		var target = $(this).attr('data-target');
		$('.tabs button').removeClass('active');
		$(this).addClass('active');
		$('.tab-content .content').removeClass('active').css({ display: 'none' });

		// Show the target content panel with an animation.
		$('#' + target)
			.css({ opacity: 0, top: '20px' })
			.addClass('active')
			.css({ display: 'block' })
			.animate({ opacity: 1, top: '0' }, 300);
	});
});

Explanation

Document Ready: The script begins by ensuring that the DOM is fully loaded before any jQuery code runs.
Tab Click Event:
- When a user clicks on a tab:The script first checks if the clicked tab is already active. If so, no further action is taken.
- It retrieves the target content panel’s ID from the data-target attribute.
- The active class is removed from all tabs and then applied to the clicked tab.
- All content panels are hidden, and the target panel is prepared for animation by setting its opacity to 0 and positioning it 20 pixels below its final position.
- The jQuery .animate() method then transitions the target panel’s top property to 0 and its opacity to 1 over 300 milliseconds, creating a smooth fade-in and slide-up effect.

This concise yet effective jQuery logic is central to making the tabs feel interactive and responsive.

Best Practices and Further Enhancements

Accessibility Improvements

When creating interactive UI components like tabs, consider adding ARIA (Accessible Rich Internet Applications) attributes. For example:

Role Attributes: Use role="tablist" for the container and role="tab" for each button.
ARIA States: Use aria-selected on buttons to indicate which tab is active.
ARIA Controls: Link the tabs with the corresponding content panels using aria-controls.

These enhancements improve accessibility for users who rely on screen readers or keyboard navigation.

Advanced Animations

While the current jQuery animation provides a pleasant user experience, you can experiment with additional effects such as easing functions or even combine multiple animations. Libraries like Animate.css or jQuery UI can offer extended animation capabilities for more complex projects.

Dynamic Content Loading

For larger applications, consider loading content dynamically via AJAX when a tab is activated. This approach is especially useful if the content panels are heavy or if you need to fetch updated information without reloading the page.

Customization Options

Allowing end users or clients to customize the appearance (such as colors or animation speeds) can make your component more versatile. For example, you might implement a settings panel where users can select different themes or toggle animations on or off.

SEO Considerations

Even though jQuery is great for dynamic interfaces, remember that search engines favor semantic, crawlable HTML. Ensure that your content panels have semantic markup (like proper heading tags) so that the content is accessible to both users and search engines. Clean, well-documented code not only boosts SEO but also makes maintenance easier.

Conclusion

In this tutorial, we have demonstrated how to create responsive vertical tabs with smooth animations using HTML, CSS, and jQuery. We began by building a semantic HTML structure, moved on to crafting a well-organized and responsive CSS layout (with properties sorted alphabetically), and finally implemented a simple yet effective jQuery script to animate the content transitions.

Key Takeaways

Semantic HTML Structure: Using clear and meaningful elements makes your code accessible and easy to maintain.
Responsive Design: A fixed container with flexible content allows your UI to adapt seamlessly to various screen sizes.
CSS Organization: Sorting properties alphabetically and indenting with tabs keeps your code neat and professional.
Smooth jQuery Animations: Simple animations can greatly enhance the user experience by providing visual cues during transitions.
Accessibility & SEO: Incorporating ARIA attributes and semantic markup ensures that your interactive components are both accessible and optimized for search engines.

By applying these techniques and best practices, you’re well-equipped to build more sophisticated, interactive web components. Experiment with additional features like dynamic content loading, customizable themes, or more advanced animations to further enhance your project.

Happy coding, and may your future projects be as dynamic and user-friendly as these responsive vertical tabs!
